Trail Tech TTO Tach / Hour Meter Kit

Trail Tech TTO Tach / Hour Meter Gauge Kit

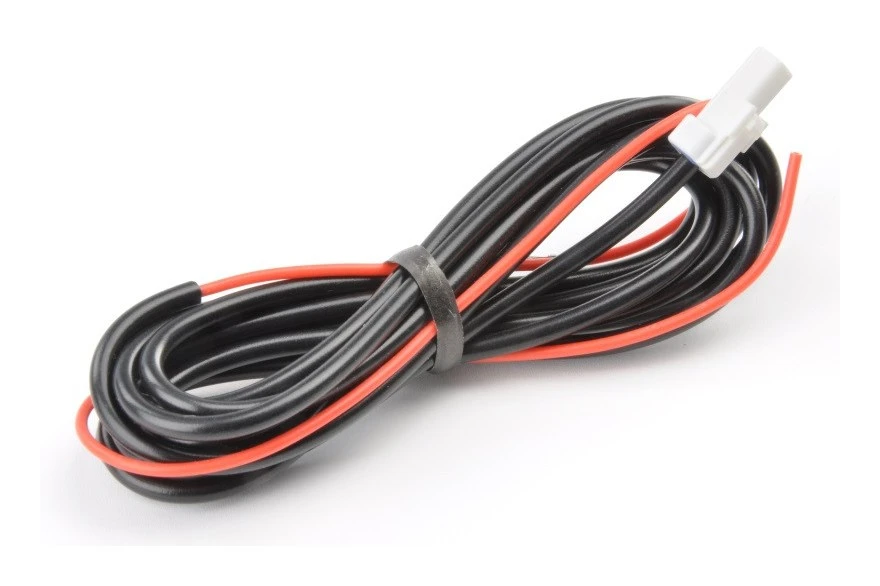

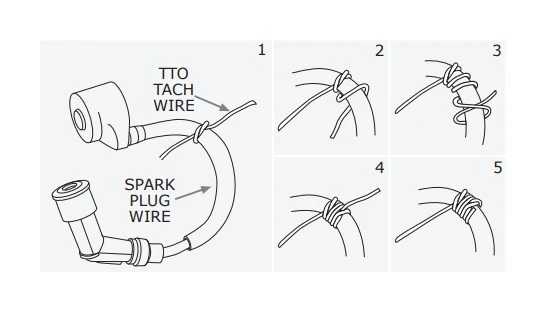

A pickup wire enables the Trail Tech TTO Tach / Hour Meter to display engine run time plus RPM on anything with a spark plug. The pickup wire wraps around your spark plug wire to sense pulses per revolution.

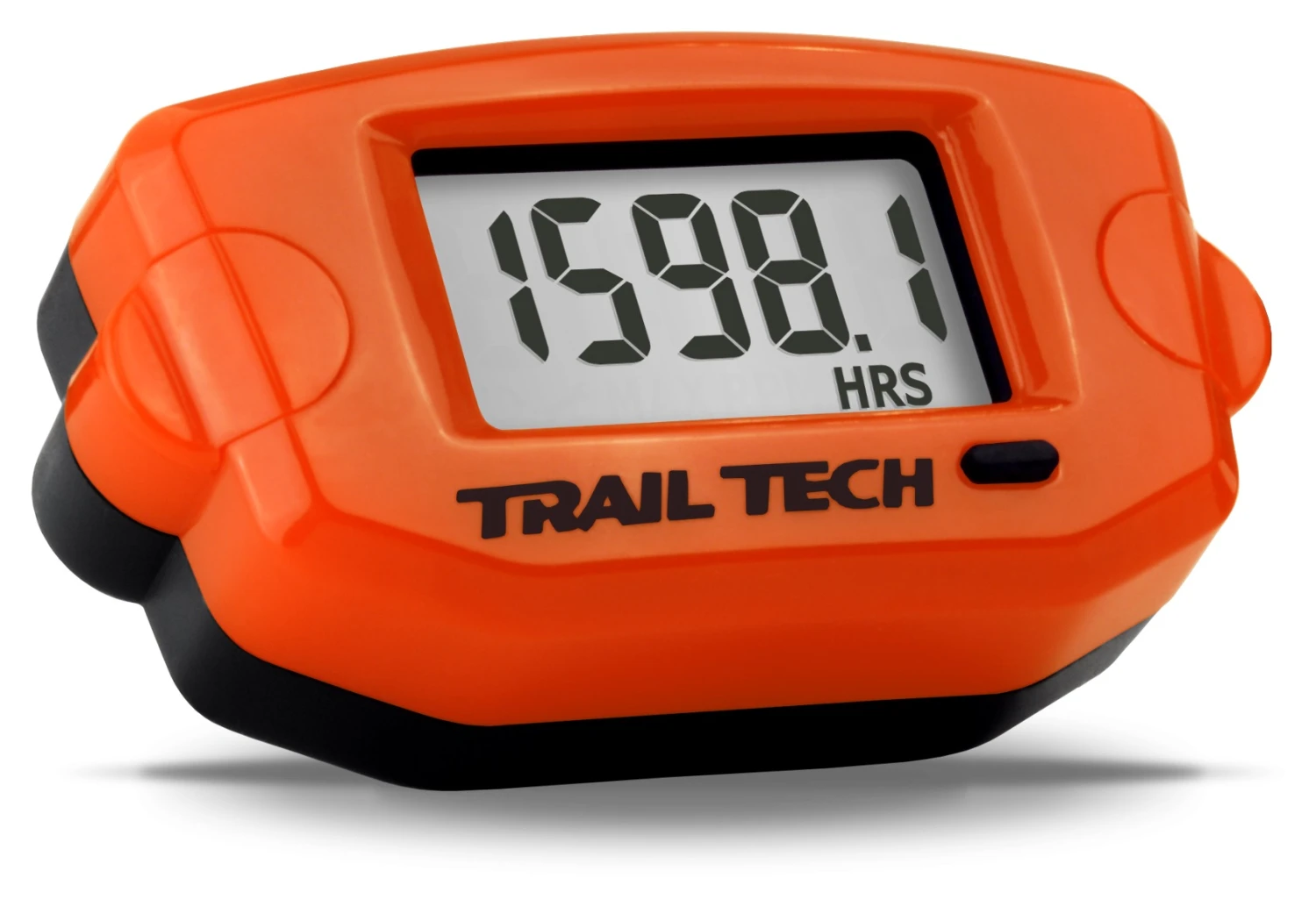

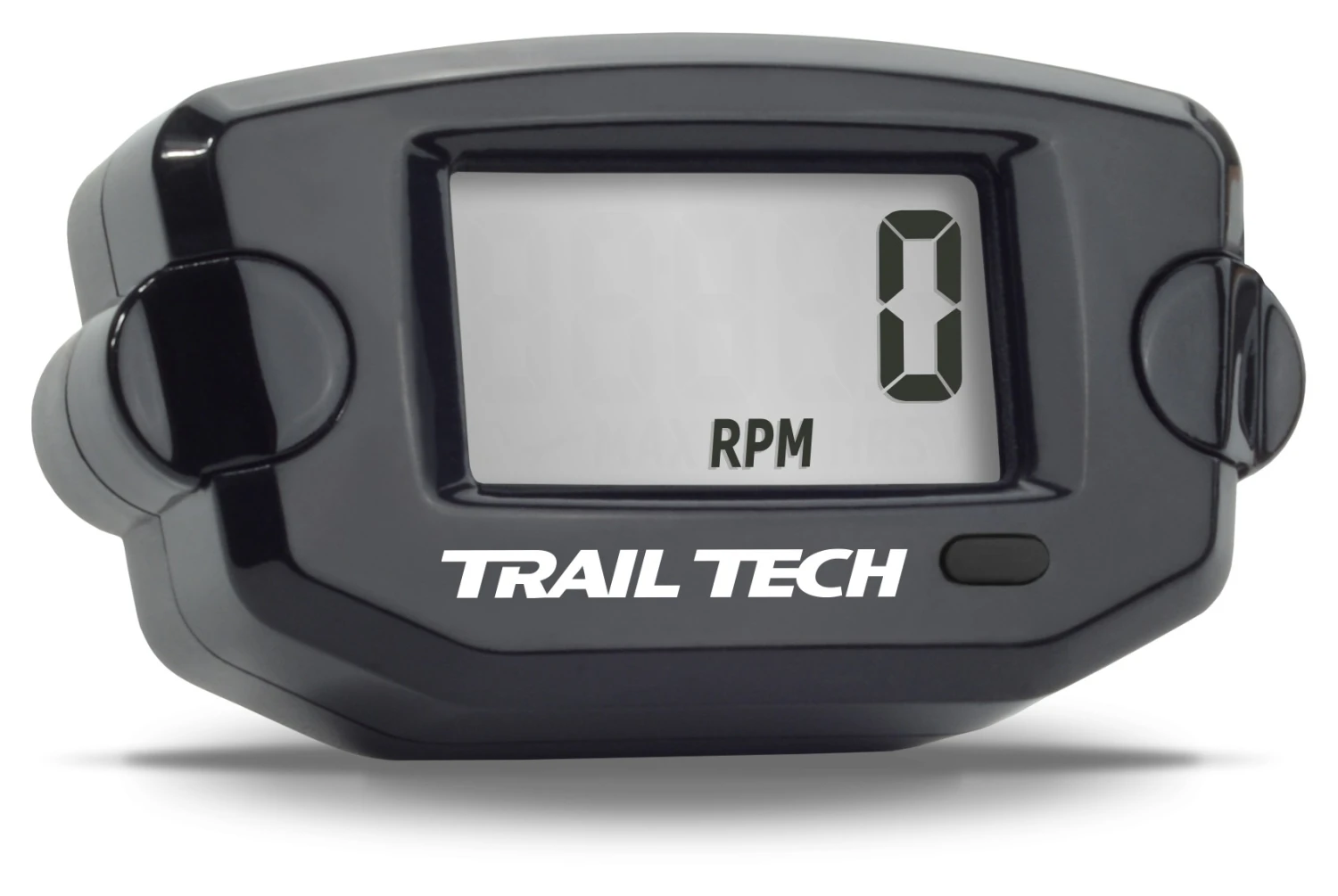

The small Surface Mount digital gauge can be mounted on any flat surface using an included double-stick adhesive strip, or it could be bolted down somewhere using (2) M4 screws (not included).

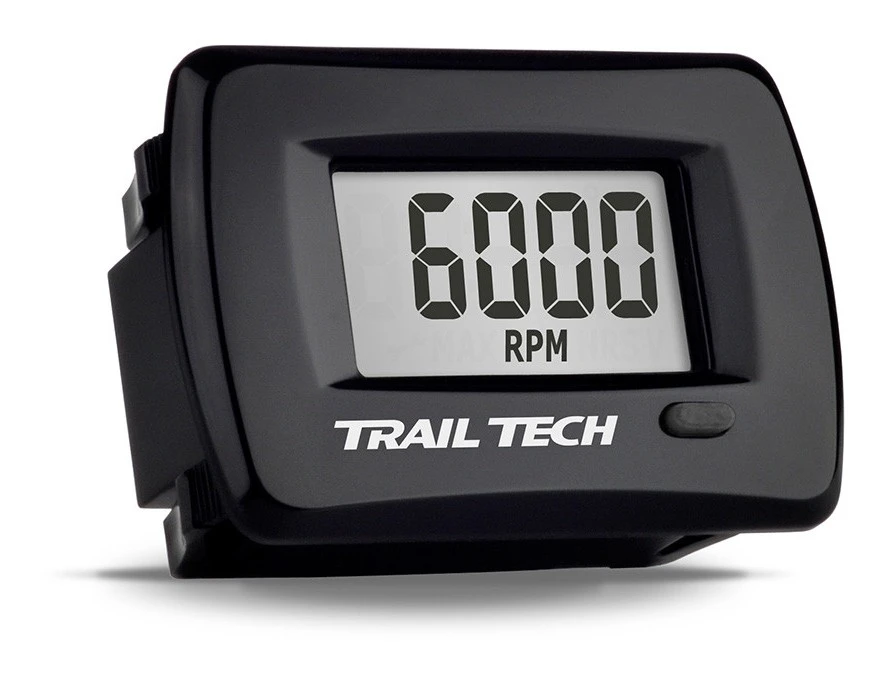

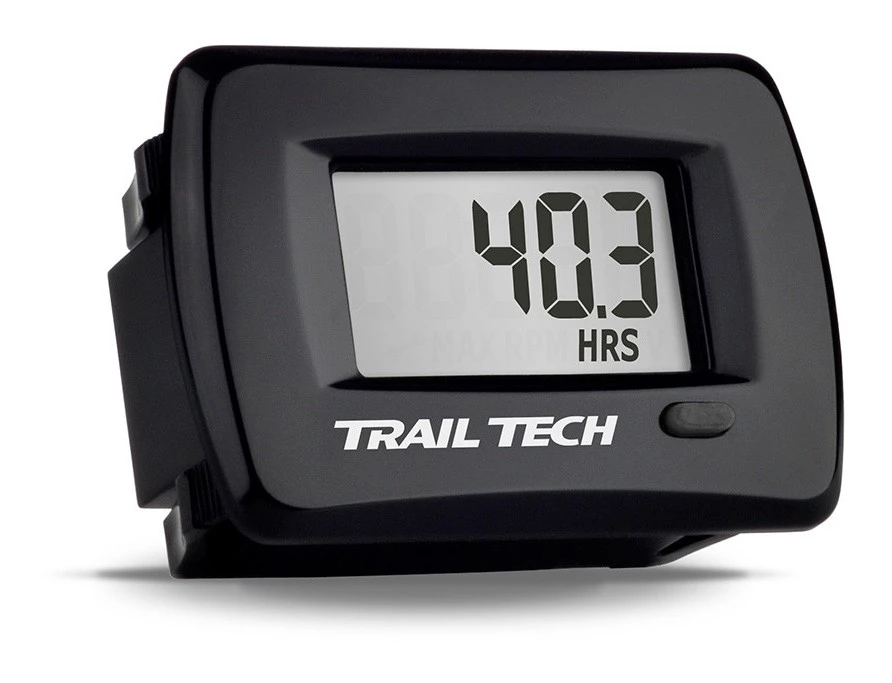

The small Panel Mount digital gauge can be mounted within any flat surface by making a cutout measuring 1.5″ L x 1″ W (requires 0.68″ of depth behind the surface).

Features:

• Total run time: 0 to 9999.9 hours
• Ride run time
• Maintenance reminder setting
• Engine speed: 0 to 19,990 RPM
• Internal battery: 5 year lifespan
• Screen size: 1″ L x 0.5″ W (24mm L x 14mm W)
• Body dimensions: 1.75″ L x 1.22″ W x 0.7″ D (45mm L x 31mm W x 17mm D)
